Quality Center Opening Landing Door Device for Elevators with ≤ AC230V, ≤ DC110V Voltage and IP2X Protection Level Passed 45kg Pendulum Impact Test

Product Categories
SHANGHAI SUNNY ELEVATOR CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

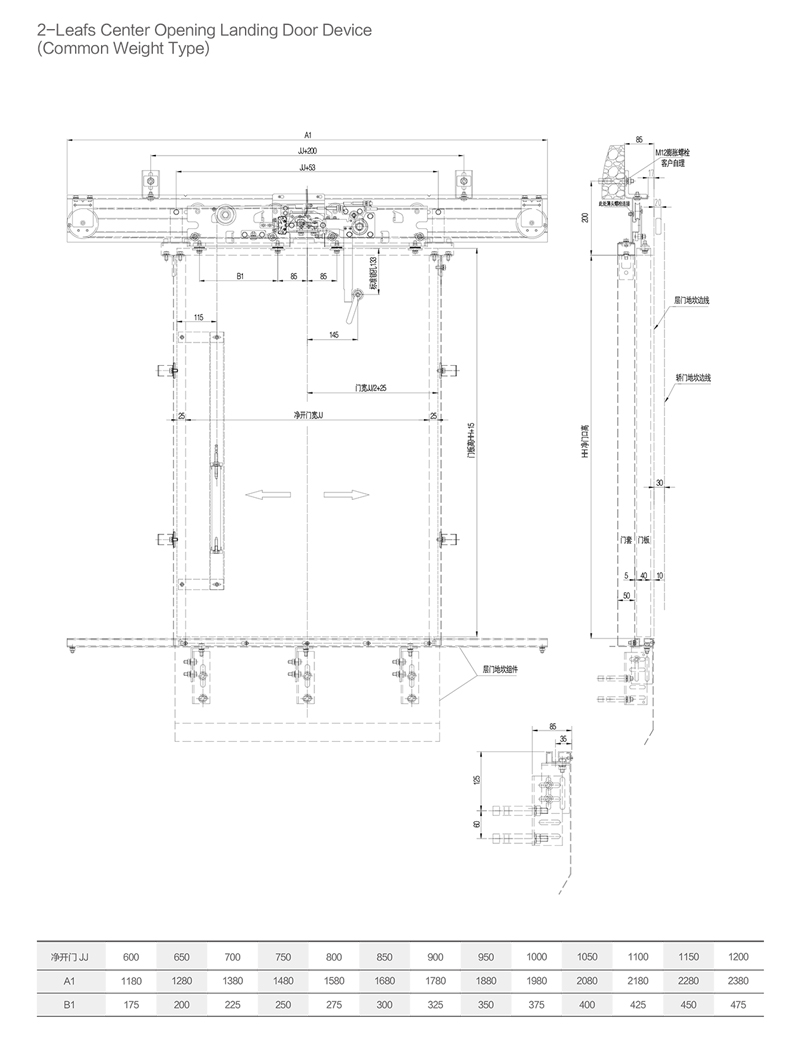

Quality Center Opening Landing Door Device for Elevators with ≤ AC230V, ≤ DC110V Voltage and IP2X Protection Level Passed 45kg Pendulum Impact Test

Brand Name : SUNNY

Model Number : SN-DM-OCM01-BA

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1set

Price : $500~1200

Payment Terms : L/C,T/T,Western Union

Supply Ability : 5000 pcs/month

Delivery Time : 15~30 days

Packaging Details : container

Name : Center Opening Landing Door Device

Opening way : center Opening

Packing : Wooden box

Application : Lift Parts

Transportation : Sea Transportation

Transportation mode : EMS or UPS) /LCL by sea or train

Door Lock Voltages : ≤ AC230V、≤ DC110V

Model : Center Opening Landing Door Device

Type : Common Weight Type

Product : Center Opening Landing Door Device

JJ : 600~1200mm

Contact Now

Quality Elevator Parts Center Opening Landing Door Device ≤ AC230V,≤ DC110V
Features:
◎Unlocking hole on landing panel or door jamb, passed 45kg pendulum impact test
◎Closing by weight type, weight and guiding pipe fixed at inner side of landing panel
◎Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, Level of protection is IP2X
◎Voltage for door lock: ≤ AC230V,≤ DC110V

Quality Center Opening Landing Door Device for Elevators with ≤ AC230V, ≤ DC110V Voltage and IP2X Protection Level Passed 45kg Pendulum Impact Test

Quality Center Opening Landing Door Device for Elevators with ≤ AC230V, ≤ DC110V Voltage and IP2X Protection Level Passed 45kg Pendulum Impact Test
Quality Center Opening Landing Door Device for Elevators with ≤ AC230V, ≤ DC110V Voltage and IP2X Protection Level Passed 45kg Pendulum Impact Test
Quality Center Opening Landing Door Device for Elevators with ≤ AC230V, ≤ DC110V Voltage and IP2X Protection Level Passed 45kg Pendulum Impact Test
Frequently Asked Questions
Are the elevator wire ropes durable?

Our elevator wire ropes meet special provisions and requirements. The configuration considers not only wire rope and rated load, but also traction size, resulting in tensile strength greater than the lift weight. The safety factor includes at least four wire ropes to prevent simultaneous breakage.

Is it dangerous if power fails suddenly during elevator operation?

The elevator will automatically stop using electrical and mechanical safety devices. In case of power failure, elevator brakes engage automatically. Power supply departments typically provide advance notice for planned outages.

Will users be hurt if the door closes suddenly?

The door automatically restarts if touched during closing, with no danger. Anti-pinch switches prevent closure when obstruction is detected, and closing force is carefully regulated.

How does the elevator operate?

Elevators operate via counterweight wire ropes through traction drive, moving vertically on guide rails.

Is escalator installation complicated?

Our escalators feature integrated structures for precision and efficiency, designed for easier installation and commissioning.

Do you have any certifications?

Yes, we hold ISO9001, CCC, and CE Certificates for our products.
