Spare Parts Elevator Elevator Speed Governor With Ф8mm Rope Wheel

Name: Spare Parts Elevator Elevator Speed Governor With Ф8mm Rope Wheel
Brand: SUNNY
Price: 120 USD

Brand Name : SUNNY

Model Number : SN-SG-XSG607-B

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1set

Price : $120

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000 Pcs/ Month

Delivery Time : 7 working days

Packaging Details : Wooden box

Name : Elevator Speed Governor

Speed : 0.25、0.3、0.4、0.5、0.63、0.75、0.8、1.0、1.5、1.6、1.75、2.0、2.5 m/s

Rope Wheel : Ф8mm

Warranty time : 12 Months

Transportation : Sea Transportation

Applicable : elevator parts

Keywords : Elevator Components

Business type : manufacturer

Model : Elevator Speed Governor

Product : Elevator Speed Governor

Sheave Diameter : Ф240mm

Contact Now

Spare Parts Elevator Elevator Speed Governor With Ф8mm Rope Wheel

Rated speed:≤2.5 m/s Rope pulley pitch diameter:φ240mm Wire rope diameter:standard configuration φ8mm , optional φ6mm(Partial speed) Lifting force:≥1000N Tension device:standard configuration HHZJ01,optional HHZJ02,HHZJ03 Supply voltage:/ Working Position:Car side or counterweight side Uplink control:Counterweight safety gear Downward control:safety gear Reset mode:Electrical switch manual reset, mechanical mechanism manual reset

Rated speed(m/s)	Pull force(N)	Wire rope diameter(mm)	Sheave pich diameter
0.25,0.3,0.4,0.5,0.63,0.75,0.8,1.0,1.5,1.6,1.75,2.0,2.5	1200-1950	φ8	φ240

Spare Parts Elevator Elevator Speed Governor With Ф8mm Rope Wheel

FAQ

1. Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?

If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?

In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?

Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?

We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?

Yes, we do with ISO9001 / CCC / CE Certificates for u.

Product Tags:

elevator speed governor spare parts

elevator rope wheel Ф8mm

elevator spare parts with warranty

Quality Spare Parts Elevator Elevator Speed Governor With Ф8mm Rope Wheel for sale

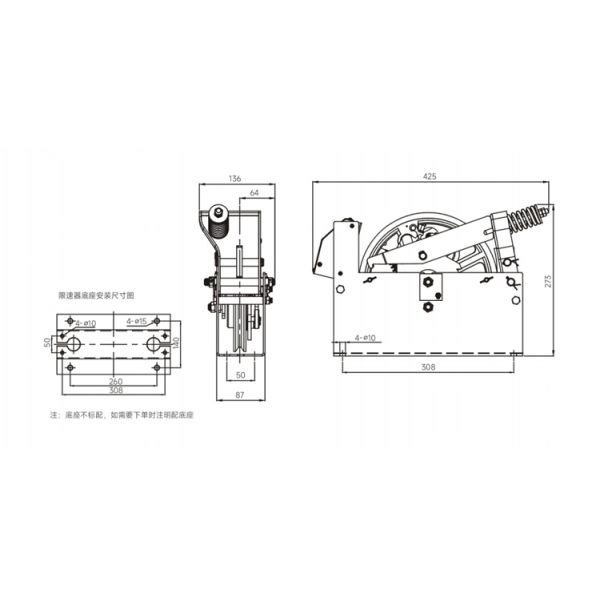

Spare Parts Elevator Elevator Speed Governor With Ф8mm Rope Wheel Images
